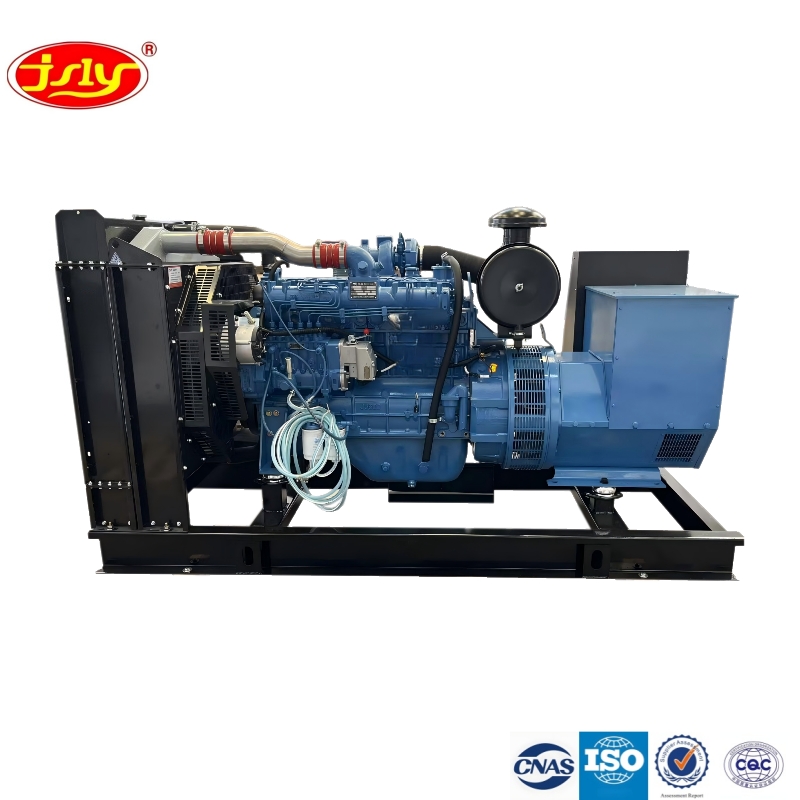

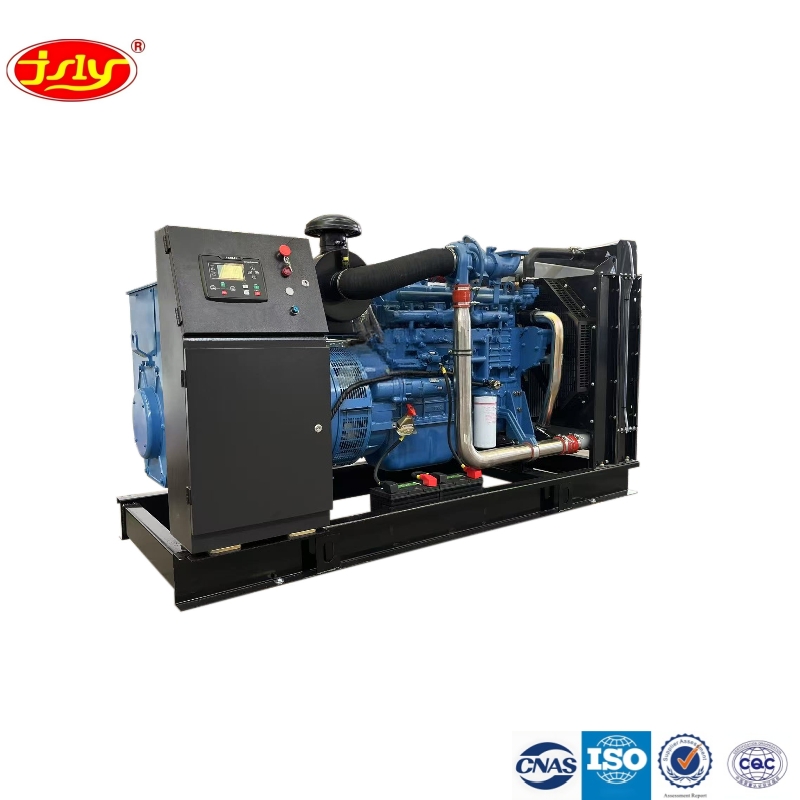

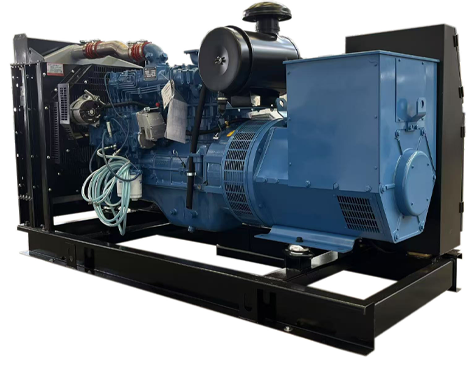

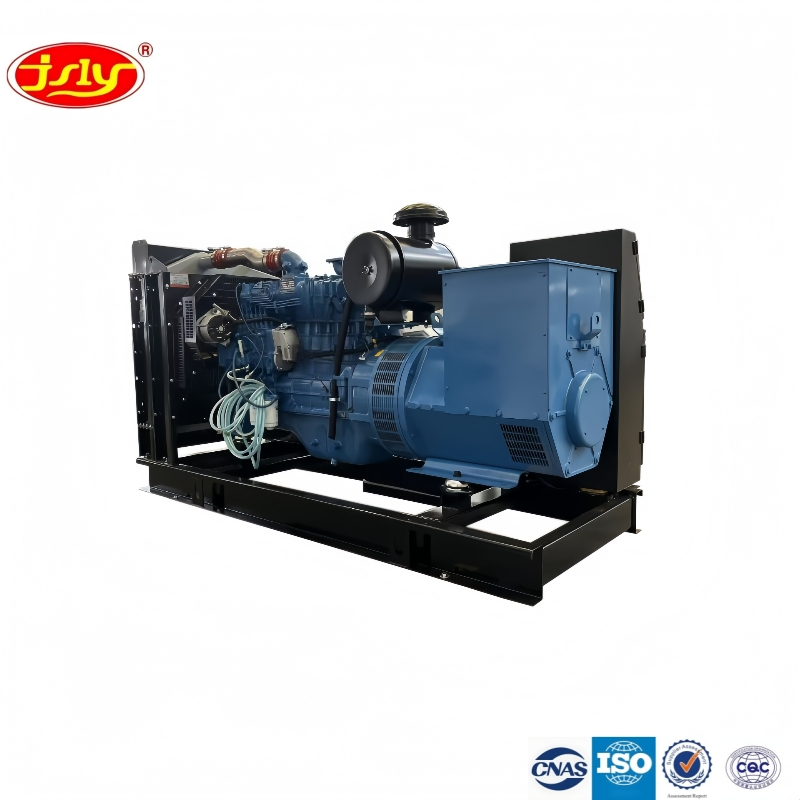

Stable and continuous diesel generator set 150kw187.5kva200kw250kva250kw312.5kva, suitable for school and hospital engineering with ISO certificate

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Powerful power system: The engine adopts core technology, with a wide range of output power to meet the power needs of multiple scenarios. It has high speed adjustment accuracy, smooth operation, and excellent load-bearing capacity. Efficient energy conversion. Excellent fuel economy and low long-term operating costs. Superior environmental performance, with some models meeting higher environmental requirements. The whole machine is made of high-quality components and undergoes strict testing to ensure long-term stable operation.


1


Technical parameters of generator set


Unit model: LY-150GF

Steady state voltage regulation rate: ≤± 0.5%

Rated power: 150KW

Transient voltage regulation rate: ≤ -10%/+15%

Rated power factor: COS Φ=0.8 (lagging)

Voltage fluctuation rate (%): ≤± 0.5

Rated output voltage: 400V/230V

Voltage stabilization time: ≤ 1.5sec

Rated current:270A

Voltage waveform distortion: ≤ 8%

Rated frequency: 50Hz

Steady state frequency adjustment rate: ≤ 3%

Rated speed: 1500rpm

Transient frequency adjustment rate: ≤± 5%

Start control mode: electric start

Frequency stabilization time: 3 seconds

Full load fuel consumption: 205g/kw/h

Steady state frequency adjustment rate (%): ≤± 1

Frequency fluctuation rate (%): ≤± 0.5

Weight:2100KG

Dimensions (mm):2600*1000*1600

Technical parameters of diesel engine:

Manufacturer:Guangxi Yuchai Machinery Group Co., Ltd.

Cooling method: Closed water circulation cooling

Model:YC6A230-D30

Type: Four stroke, exhaust gas turbocharging, direct injection compression ignition

Power:155/171KW

Lubricating oil capacity:41L

Number of cylinders: 6/inline type

Speed regulation method: electronic speed regulation

Exhaust volume:7.2L

Cylinder diameter * stroke:108mm*132mm

Starting method: DC24V electric start

Speed: 1500rpm

Generator technical parameters:

Manufacturer: Jiangsu Lingyu Generator co., Ltd

Protection level: IP22

Model: LYW-150

Wiring method: three-phase four wire, Y-shaped connection

Rated power: 150KW

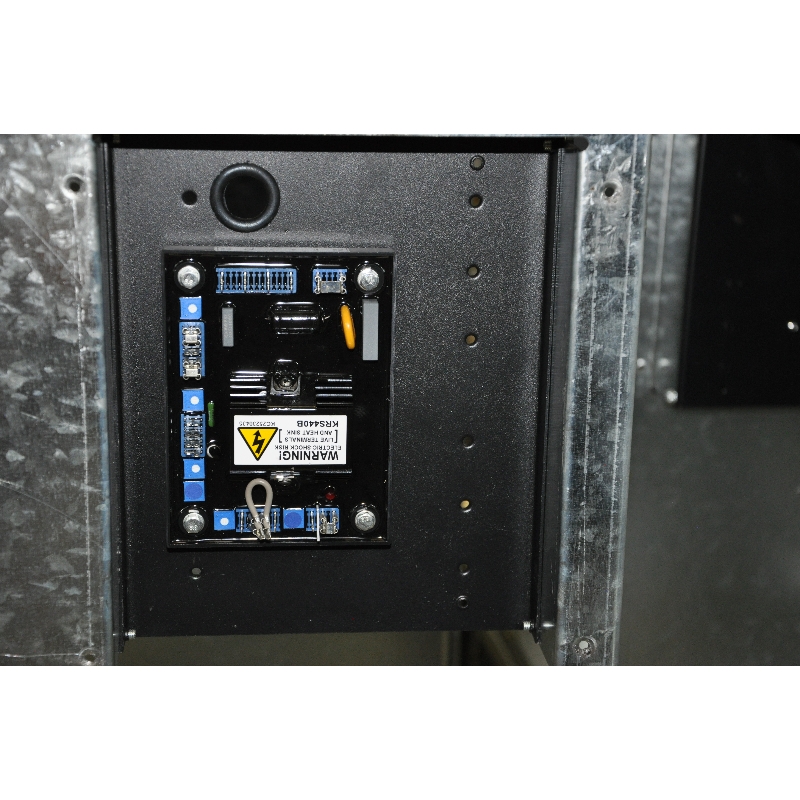

Adjustment method: AVR (Automatic Voltage Regulator)

Rated voltage: 400V/230V

Output frequency: 50Hz

Insulation level: H-grade

Excitation method: brushless self excitation

Winding material: Pure copper

Motor type: brushless three-phase AC synchronous generator

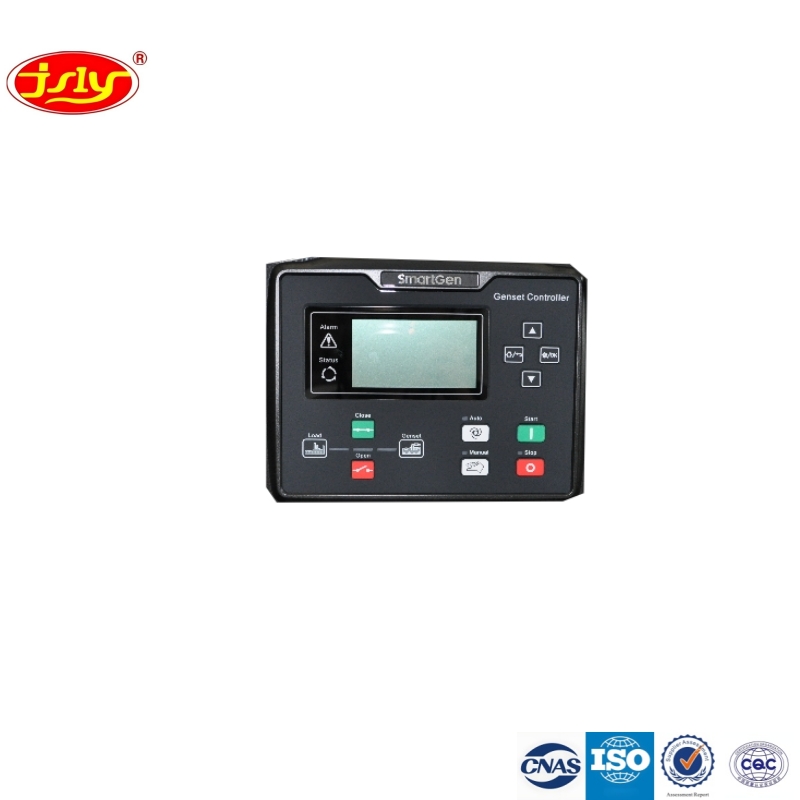

Basic parameters of the controller:

Model: HGM6110

Brand: smartgen

Manufacturer:SMARTGEN(ZHENGZHOU)TECHNOLOGY CO.,LTD.

Display mode: LCD display

Language type: Supports eight languages worldwide

The standard configuration of the generator set is as follows:

Connecting chassis material: I-beam or channel steel

Chassis strength: Passed 500KG torque test

Unit steel shared base (including: Unit composite damping rubber pad)

Cooling water tank material: Lingyu/diesel engine factory specific water tank

Battery: Maintenance free battery

Optional accessories (additional cost):

Oil heater,diesel heater,water jacket heater,anti condensation heater

Battery float charger

Self protection and self starting unit control screen

Unit control screen with "three remote" function

ATS automatic load transfer screen

Split type daily fuel tank, integrated base fuel tank

Container body

Silent enclosure

Mobile trailer

Rainproof enclosure


1. Use 0 #~-30 # light diesel and specify the use of 15W-40CD and above grade engine oil (or Choose according to the specific local environment).
2. The starting temperature is above+5 ℃; When equipped with a water oil temperature heating device, the starting temperature is -15 ℃; When the unit is used below 0 ℃, low-temperature starting measures such as antifreeze should be taken.
3. Noise coefficient of the unit at a distance of 10 meters: ≤ 85-95db (A), in compliance with international standards.
4.Our company can provide land use units ranging from 8KW to 3000KW.
5. The generator sets produced by our company meet the standards of AC generator sets driven by reciprocating internal combustion engines.
6. Pressure regulation mode: automatic or manual.
7. Precautions for users in cold regions: Adjust the engine oil, diesel, and coolant appropriately according to temperature changes to ensure the normal operation of the unit.

8. With the continuous updates of the product, if there are any changes or modifications to the sample parameters, the random file shall prevail. Our company reserves the right of final interpretation without further notice.


Product quality is guaranteed
From production assembly to testing and debugging before leaving the factory, we strictly control every aspect of production to ensure that every machine is of high quality
Service is in place
comprehensive after-sales service system,Provide professional technical support and maintenance services to customers
Wide range of applications
Adapt to various power generation equipment, including mobile, silent, and trailer type, providing customers with more choices
cost-effective
Can meet the needs of different customers and save costs


Our Factory


1



Packaging and Transportation Methods


2

The pictures are for reference only, please refer to the actual product.


For more details, please contact us！
