Powerful power system: The engine adopts core technology, with a wide range of output power to meet the power needs of multiple scenarios. It has high speed adjustment accuracy, smooth operation,and excellent load-bearing capacity. Efficient energy conversion. Excellent fuel economy and low long-term operating costs. Superior environmental performance, with some models meeting higher environmental requirements. The whole machine is made of high-quality components and undergoes strict testing to ensure long-term stable operation.

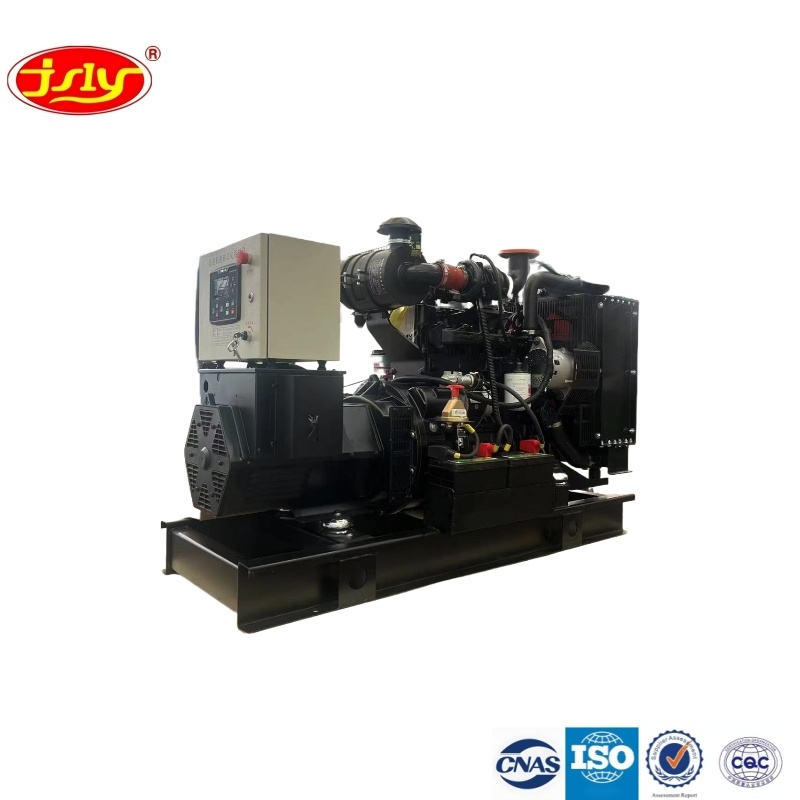

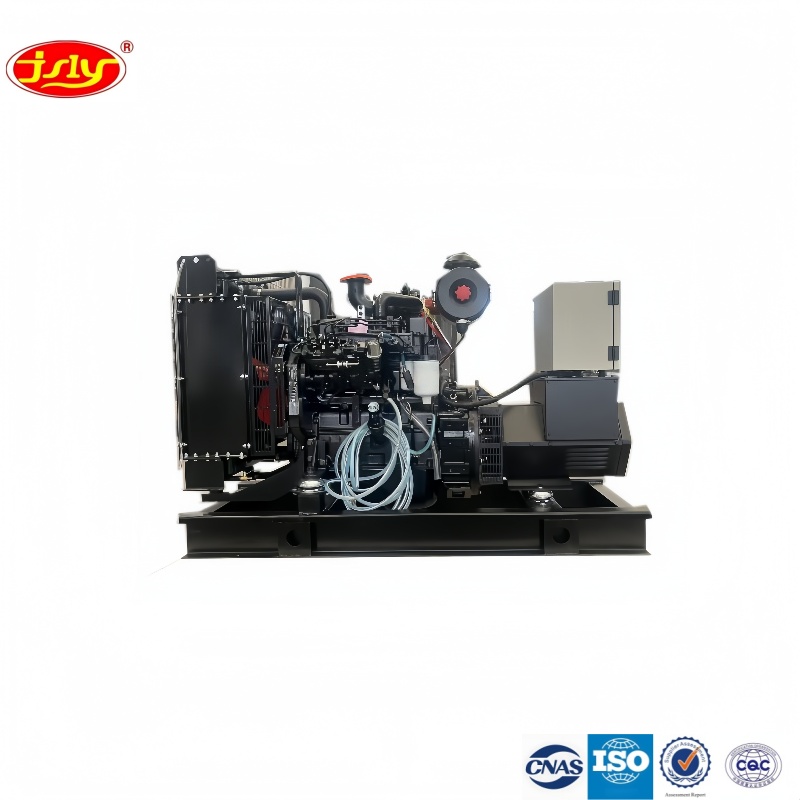

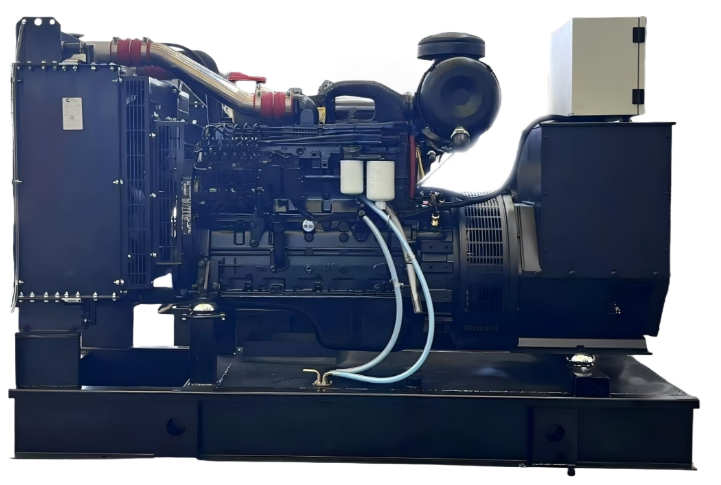

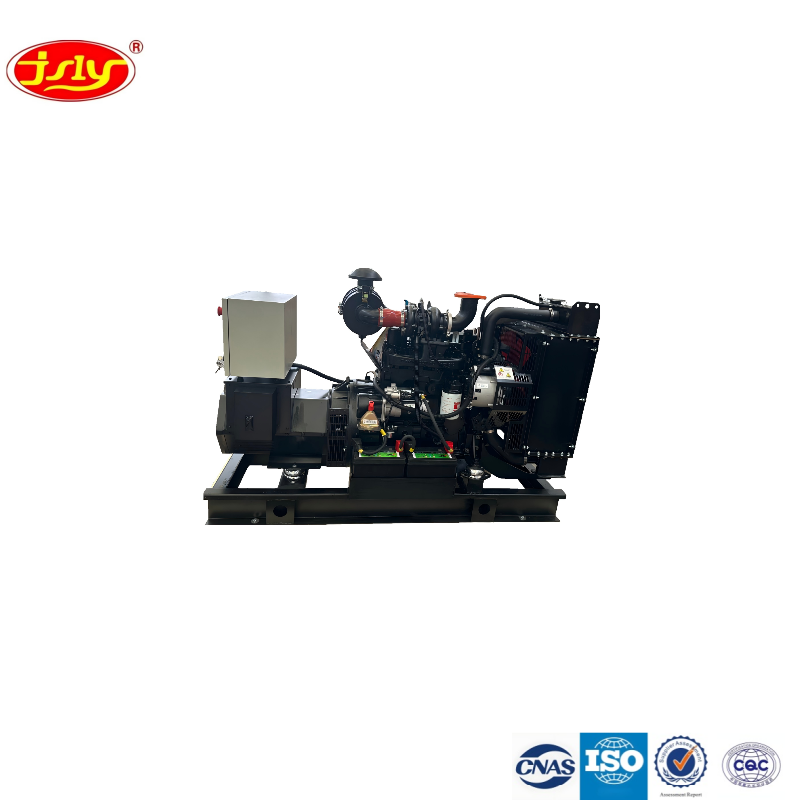

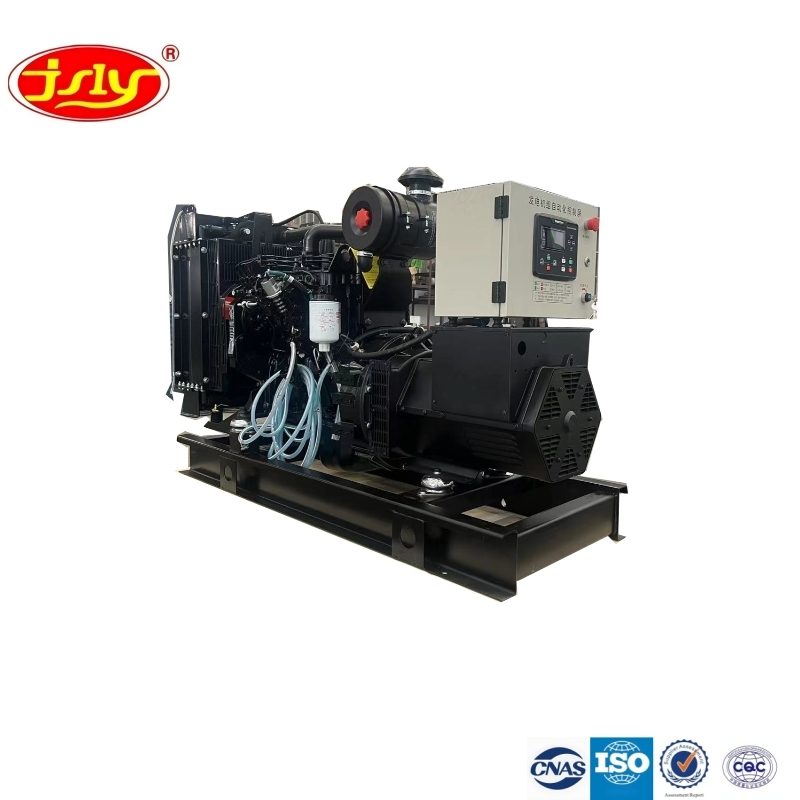

Technical parameters of generator set
Unit model: LY-30GF | Steady state voltage regulation rate: ≤± 0.5% |
Rated power: 30KW | Transient voltage regulation rate: ≤ -10%/+15% |
Rated power factor: COS Φ=0.8 (lagging) | Voltage fluctuation rate (%): ≤± 0.5 |
Rated output voltage: 400V/230V | Voltage stabilization time: ≤ 1.5sec |
Rated current:54A | Voltage waveform distortion: ≤ 8% |
Rated frequency: 50Hz | Steady state frequency adjustment rate: ≤ 3% |
Rated speed: 1500rpm | Transient frequency adjustment rate: ≤± 5% |
Start control mode: electric start | Frequency stabilization time: 3 seconds |
Full load fuel consumption: 205g/kw/h | Steady state frequency adjustment rate (%): ≤± 1 |
Frequency fluctuation rate (%): ≤± 0.5 | Weight:710KG
|
Dimensions (mm):1700*720*1200 | |
Technical parameters of diesel engine: | |
Model:4BT3.9-G1 | Cooling method: Closed water circulation cooling |
Power:36/40KW | Type: Four stroke, exhaust gas turbocharging, direct injection compression ignition |
Number of cylinders: 4/inline type | Lubricating oil capacity:10.9L
|
Exhaust volume:3.9L | Speed regulation method: electronic speed regulation |
Starting method: DC24V electric start | Cylinder diameter * stroke:102mm*120mm
|
Generator technical parameters:
| |
Manufacturer: Jiangsu Lingyu Generator co., Ltd | Protection level: IP22 |
Model: LYW-30 | Wiring method: three-phase four wire, Y-shaped connection |

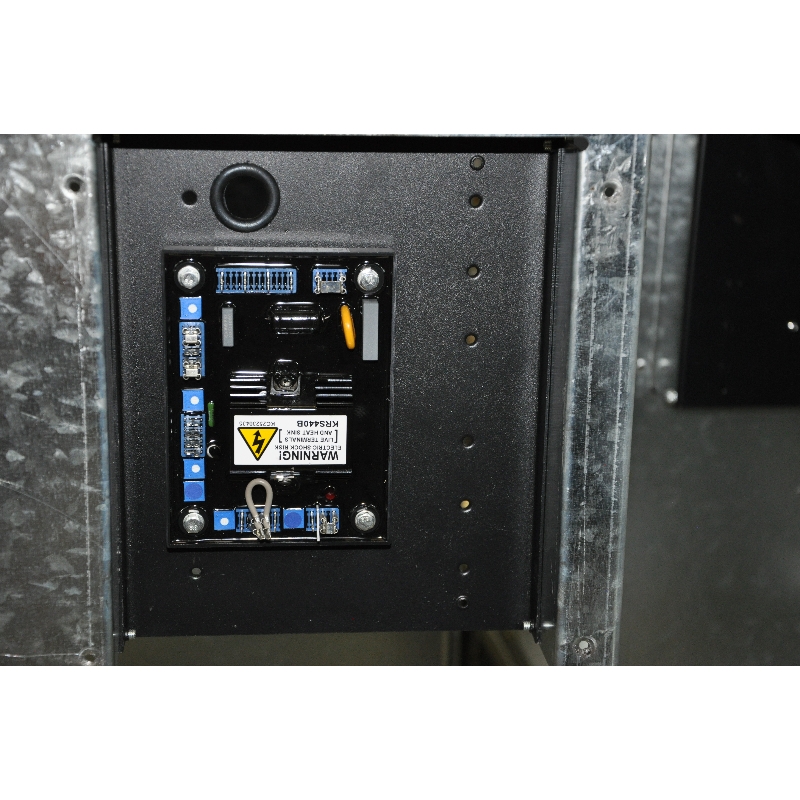

Rated power: 30KW | Adjustment method: AVR (Automatic Voltage Regulator) |
Rated voltage: 400V/230V | Output frequency: 50Hz |
Insulation level: H-grade | Excitation method: brushless self excitation |
Winding material: Pure copper | Motor type: brushless three-phase AC synchronous generator |
Basic parameters of the controller: |
Model: HGM6110 |
Brand: smartgen |
Manufacturer:SMARTGEN(ZHENGZHOU)TECHNOLOGY CO.,LTD. |
Display mode: LCD display |
Language type: Supports eight languages worldwide |
The standard configuration of the generator set is as follows: |
Connecting chassis material: I-beam or channel steel |
Chassis strength: Passed 500KG torque test |
Unit steel shared base (including: Unit composite damping rubber pad) |
Cooling water tank material: Lingyu/diesel engine factory specific water tank |

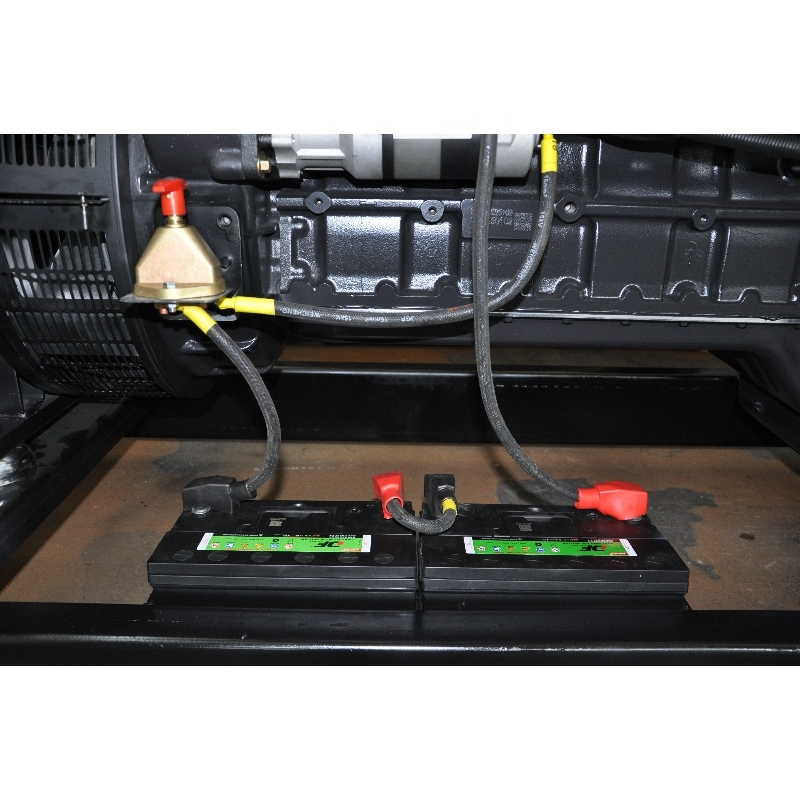

Battery: Maintenance free battery |
Optional accessories (additional cost): |
Oil heater,diesel heater,water jacket heater,anti condensation heater |
Battery float charger |
Self protection and self starting unit control screen |
Unit control screen with "three remote" function |
ATS automatic load transfer screen |
Split type daily fuel tank, integrated base fuel tank |
Container body |
Silent enclosure |
Mobile trailer |
Rainproof enclosure |
